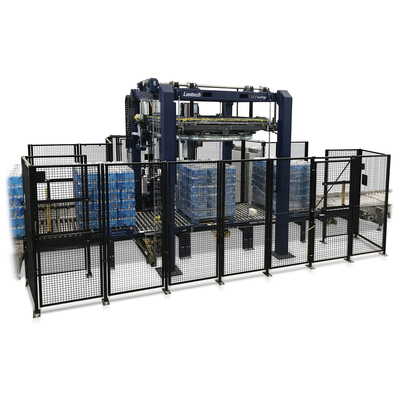

The Lantech RLA Rotary Ring Automatic Wrapping Machine range is engineered for ultra-high-volume applications where continuous performance is essential, wrapping up to 180 loads per hour with minimal operator intervention. Designed around Lantech’s next-generation ring stretch wrapping technology, it delivers high-speed rotation without compromising load quality or operating cost. LeanWrap® features work together to create stable, safe-to-ship loads while helping to reduce downtime, film breaks and unnecessary operator touches.
At the core of the system is a combination of proven load containment and film management technologies. Metered Film Delivery® applies better, more consistent wrap force with less film, while helping to prevent load crushing or twisting. Pallet Grip® secures the load to the pallet by forming a tight film cable at the base, improving transit stability and helping protect goods throughout the supply chain.
Ease of use is equally important in demanding environments, which is why Load Guardian® provides an intuitive control system that simplifies set-up and gives operators access to wrapping data and on-screen help. Wrap Cycle Control allows film tension adjustments to be made directly at the control panel while the machine is running, supporting consistent performance without interrupting throughput. In addition, the absence of electrical slip rings helps minimise maintenance issues that could otherwise stop production.
For businesses looking to maximise efficiency, safety and uptime, this rotary ring stretch wrapper offers a highly productive and dependable end-of-line solution. With robust construction, safer installation features and a wide range of optional upgrades, it is well suited to operations that need to maintain fast-moving lines while keeping loads secure and shipping-ready.
Key Features
- Wraps up to 180 loads per hour
LeanWrap® productivity and performance features
Load Guardian® intuitive control system
Pallet Grip® locks load to pallet
Metered Film Delivery® for better wrap with less film
Wrap Cycle Control for live tension adjustment
No electrical slip rings for reduced maintenance
Steel stanchions for safer, easier installation
Designed for stable, safe-to-ship loads
Guarantees
- 1-years part, 1-year labour, unlimited cycles
Regionally-based, 24/7 global technical and customer support
Most parts ship same day
Additional Features
- Available options include:
• LINC® remote machine monitoring and performance data
• ARC automatic roll change with up to three additional film rolls
• Cold Package for operation in temperatures from -1 to -13°C
• Top Sheet Dispenser for moisture and dust protection
• Additional conveyor sections in multiple lengths
• Additional wrap height capacity for loads up to 2794mm (110")
What can it be used for?
- There is a Q-Series model to match your material handling needs - fork truck, pallet truck or conveyor
High-speed packaging operations demand equipment that can keep production moving while maintaining load stability, safety and cost control. Lantech has developed its LeanWrap technology to help businesses achieve consistent wrapping performance with less downtime, fewer film-related interruptions and lower operating costs. Combining advanced containment features with intuitive controls and flexible upgrade options, the RLA range provides a reliable and efficient solution for modern end-of-line packaging environments.
